Description

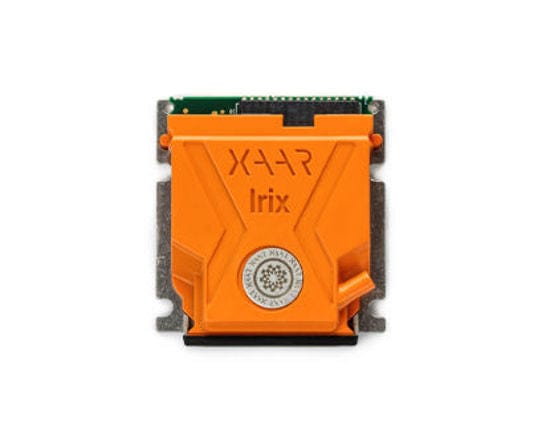

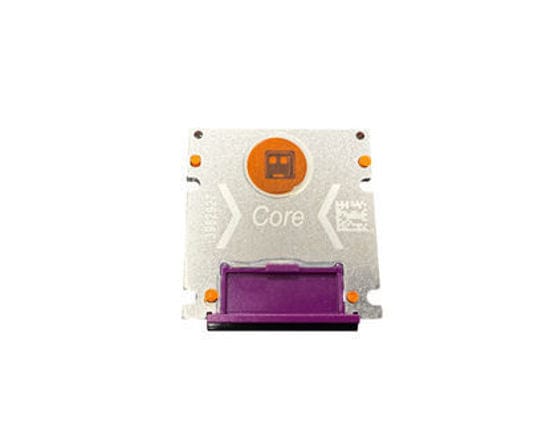

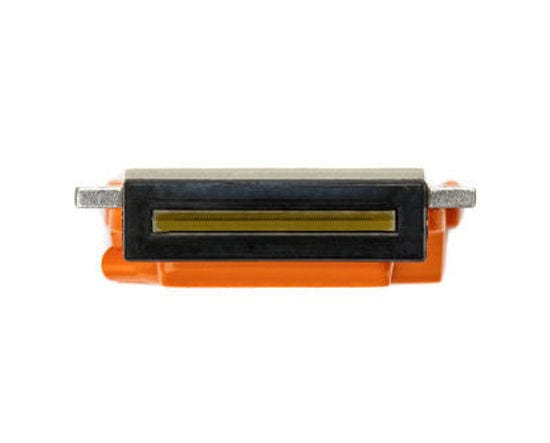

The Xaar Irix Core 80W printhead with purple insulator is suitable for a wide range of oil, solvent and water based ink systems. This printhead serves as a direct replacement for the discontinued Xaar XP12800005 and XP12800006 heads, and can be used instead of XP12800071, offering identical performance, quality and printer compatibility. No firmware changes are required in the printer software either. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.
Product specification:
- Active nozzles: 128
- Nozzle density (NPI): 185
- Print swathe (mm): 17
- Dimensions (mm): 37.2 x 11.3 x 40.8
- Mass (g): 15.5
- Colour of insulator: Purple
- Drop size (pL): 80
- Drop velocity (m/s): 5
- Max frequency (kHz): 5.5
- Linear speed (m/s @ 180 DPI): 0.78
- Print distance (mm): <5
- Max angular deviation (degrees): 1.8
- Drop velocity variation 3σ (m/s): +/- 0.50
- Country of origin : United Kingdom
Warranty exclusions:
The following items are expressly excluded from the warranty coverage:
- Defects related to the use of non-original inks
- Clogged, missing, or deviated nozzles
- Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- Defects related to improper loading of media
- All other defects, failures, or damage not considered manufacturing defects
- Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- Defects that are merely cosmetic.
Compatible Printers:
- Algotex Streamjet 180
- Atexco Aprint-3308B
- DGI REX-62
- DGI VT-100D
- DGI VT-130D
- DGI VT-62
- DGI VT-92
- DGI VTII-62
- DGI VTII-62P
- DGI VTII-92
- DGI VTII-92P
- DGI VTIII-98D
- DGI VTIII-98DP
- DGI VTIII-98DS
- DGI VTIV-62
- DGI VTIV-92
- DGI VTIV-98
- DGI VTV-1604
- DGI VTV-1606
- DGI VTV-2504
- DGI VTV-2506
- HP Fresco 1800
- HP Fresco 3200
- HP Fresco HiQ 4C 1800
- HP Fresco HiQ 4C 3200
- HP Fresco HiQ 8C 1800HP
- Fresco HiQ 8C 3200
- HP Salsa 1500
- HP Salsa 2400
- HP Salsa 3200
- HP Scitex Grandjet 2.2M
- HP Scitex Grandjet 3.5M
- HP Scitex Grandjet 5M
- HP Scitex XL1200 2.2M (XLJet 2)
- HP Scitex XL1200 3.2M (XLJet 3)
- HP Scitex XL1200 5M (XLJet 5)
- HP Scitex XL1500 2.2M (XLJet +2)
- HP Scitex XL1500 3.2M (XLJet +3)
- HP Scitex XL1500 5M (XLJet +5)
- HP Scitex XLJet 2 Premium
- HP Scitex XLJet 3 Premium
- HP Scitex XLJet 5 Premium
- JHF Vista 1808
- JHF Vista 2508
- JHF Vista 3312
- SPRIN USA SPK-260
- SPRIN USA SPK-320
- SPRIN USA SPR-185
- SPRIN USA SPR-260
- SPRIN USA SPR-320
- SPRIN USA XL-185
- Squid Ink CoPilot 128
- Allsign E-Type
- Ampla Digital Targa Plus 1808
- Ampla Digital Targa Plus 1812
- Ampla Digital Targa Plus 1816
- Ampla Digital Targa Plus 2508
- Ampla Digital Targa Plus 2512
- Ampla Digital Targa Plus 2516
- Ampla Digital Targa Plus 3208
- Ampla Digital targa-plus-3212
- Ampla Digital Targa Plus 3216
