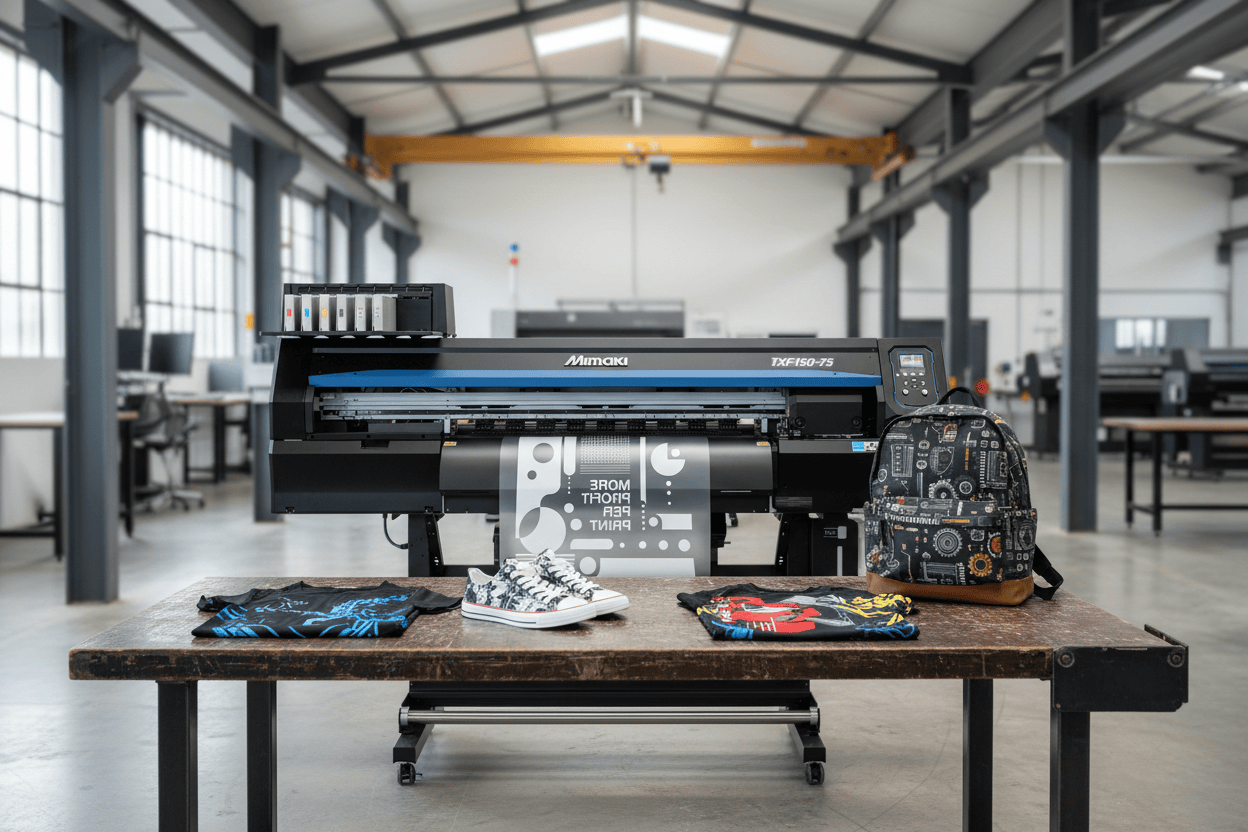

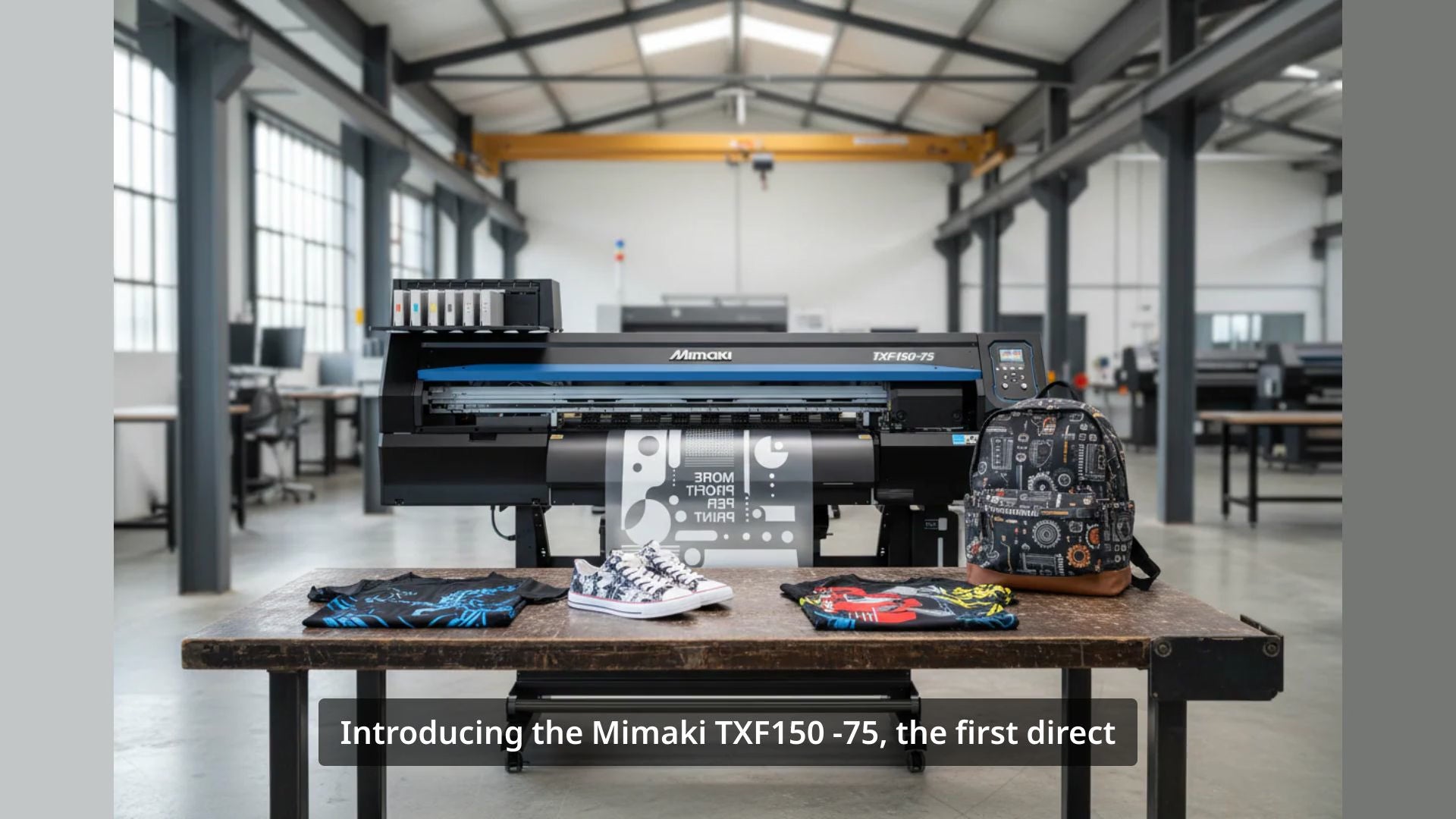

Mimaki TXF150-75 DTF printer

Economisez 2%

Prix réduit$18,595.00 USD Prix normal$18,995.00 USD
When product is not in stock, usually the time to process is 5-7 days.


Mimaki's first DTF (Direct To Film) printer

TxF150-75 is a reliable, high-quality printer incorporating Mimaki's technologies based on "safety and stability.” The DTF printer is designed to focus on stable quality, including functions to prevent "ink ejection failure" and "white ink clogging," which have been significant issues for DTF printers.
  • Equipped with the newest version of Mimaki Circulation Technology (MCTv2) that prevents white ink sedimentation by constantly circulating the ink
  • A degassed aluminum ink pack prevents nozzle clogging by reducing oxygen and other gases from mixing with the ink.
  • The nozzle check unit (NCU) & Nozzle Recovery System (NRS) check for clogged nozzles and automatically perform nozzle cleaning and replacement without interrupting printing.

Our Core Technologies


Nozzle Check Unit


Nozzle Recovery System


Mimaki Circulation Technology


Mimaki Advanced Pass System



On-demand piezo head

Print resolution

720dpi, 1,440dpi

Print speed (4 color)

up to 35.5 ft²/hr (3.3m²/hr)

Maximum Print Width

800mm (31.5″in)

Maximum media width

810mm (31.9 in)

Maximum Media Thickness

up to 0.04″ (1 mm)

Maximum Media Weight⁨⁣

Up to 99.2 pounds (45 kg)

Ink Type

Heat transfer pigment ink PHT50 (C,M,Y,K,W)


Ethernet 1000 BASE-T / USB2.0

Power Supply⁧⁢

Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1

Power Consumption

100V system: 1.44kW, 200V system: 1.92kW

Operational Environment

Temperature 20° – 30°C
Humidity: 35 – 65 % RH (Noncondensing)

Dimensions (W × D × H)

(77.4 x 27.6 x 54.8 in)


126kg (277.8 lb)


VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH,

Energy Star, RCM, KC


Thermal transfer pigment ink (PHT50) Cyan Magenta Yellow Black White
600ml PHT50-C-60 PHT50-M-60 PHT50-Y-60 PHT50-K-60
500ml PHT50-W-50
