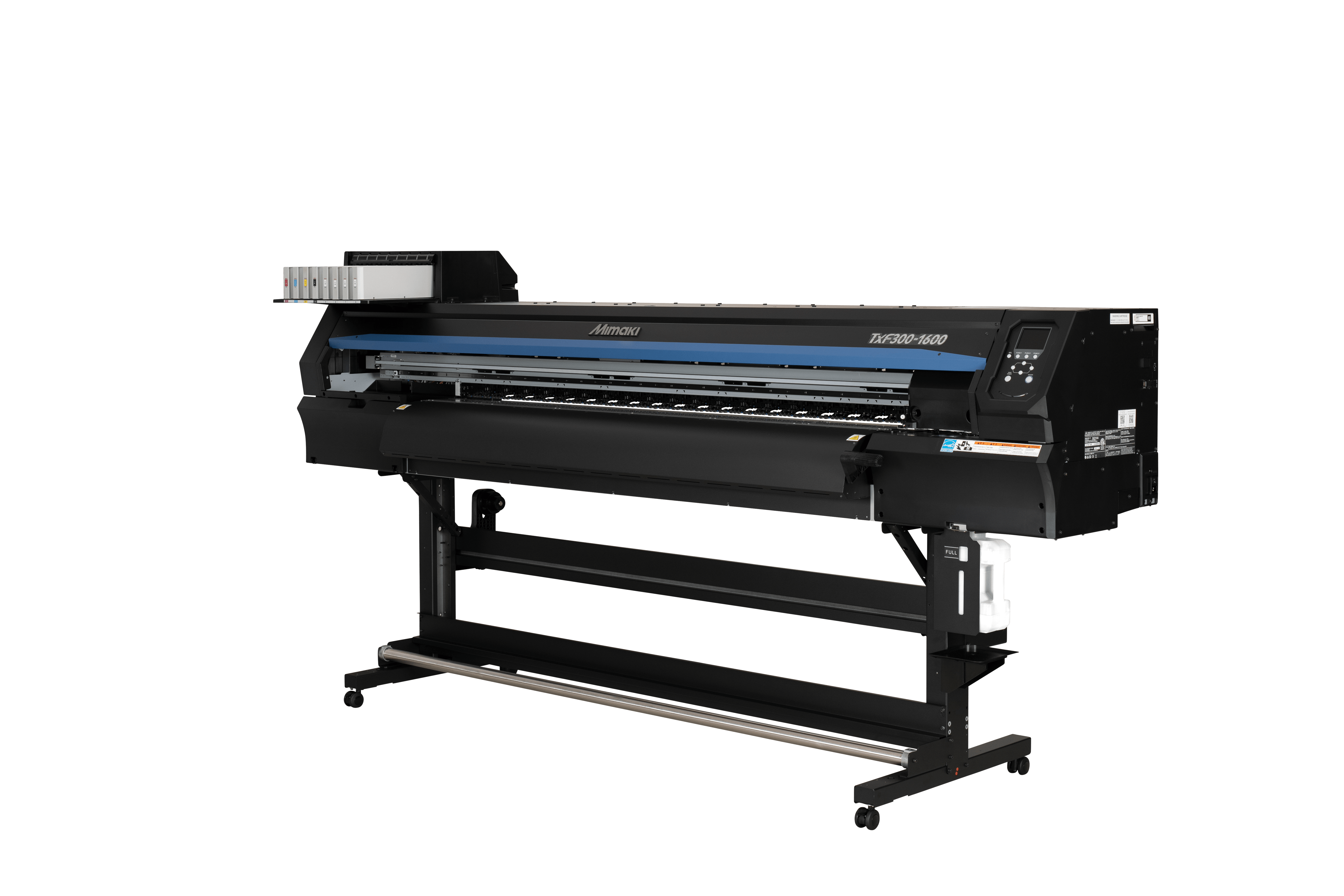

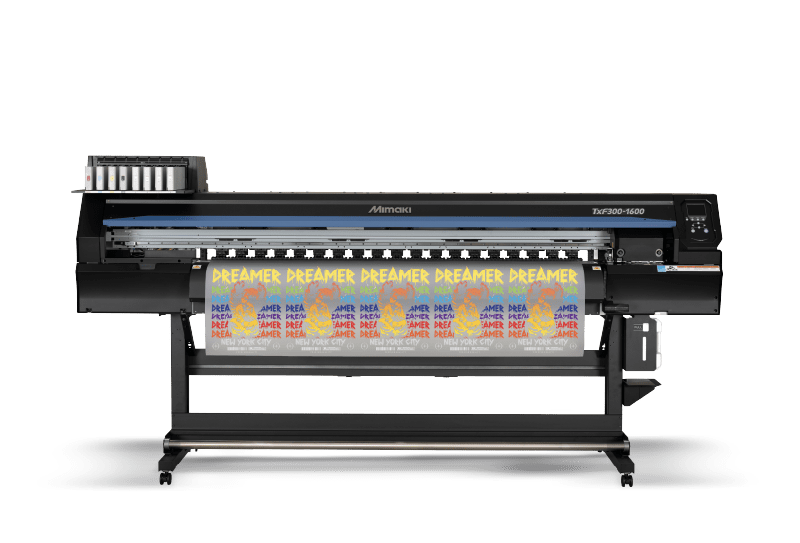

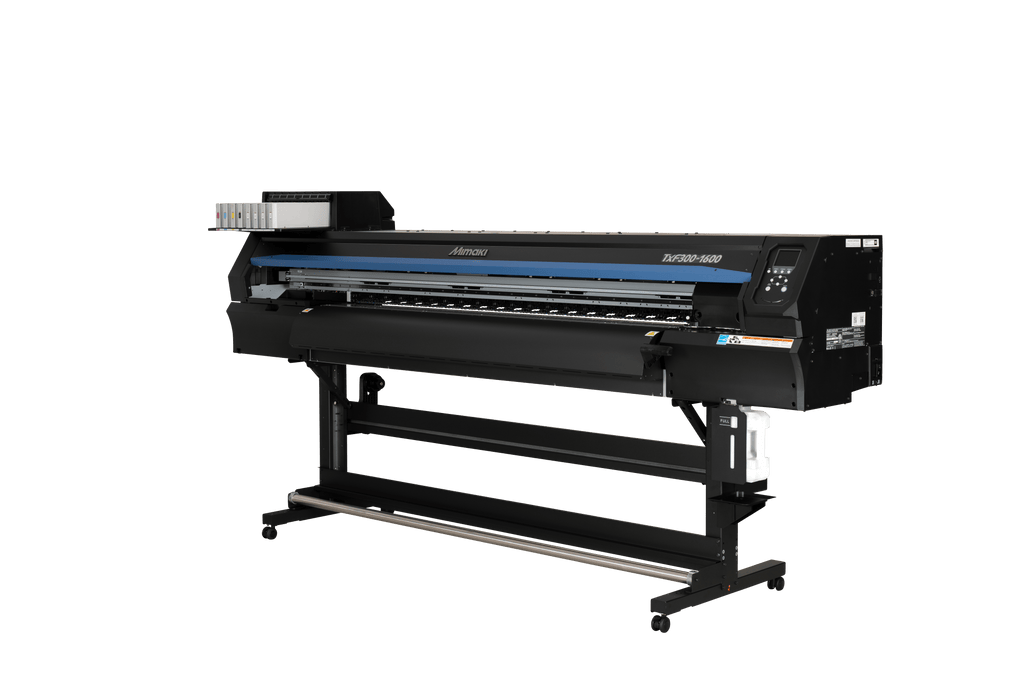

Mimaki TXF300-75/1600 DTF printer

Economisez 16%
Prix:
$15,995.00 USD $18,995.00 USD
FINANCE NOW
When product is not in stock, usually the time to process is 5-7 days.
View in Your Space

Get a 360 view of the product and use our augmented reality tool to see them in your real-life space true to size.

Description

Mimaki DTF (Direct To Film) Printer

The new Mimaki TxF300-1600 takes direct-to-film to another level with the ability to print up to 63” rolls. Embodying the same core functionalities as the industry leading TxF300-75 model, the new TxF300-1600 increases both versatility and throughput without additional parts complexity and maintenance required with additional printheads. The TxF300-1600 further sets Mimaki apart as a textile and apparel printing solutions leader. Integral features for seamless operations include:
  • Quickly produce indoor and outdoor prints on a large selection of media with ‘one printer to do it all’ versatility in a small footprint.
  • Enjoy outstanding quality, productivity, and the industry’s best outdoor durability, all at an attractive price point.
  • A complete print & cut device with integrated software and a range of ink choices to print a wide range of applications.
  • Easy to use with included RIP software that offers extreme accuracy when creating instant decals and large wall graphics.
  • Outstanding quality and productivity at an attractive price point
  • Mimaki Core Technologies deliver exceptional results economically and with maximum productivity.
  • Select from three model widths to suit your production needs.

Our Core Technologies


Nozzle Check Unit


Nozzle Recovery System


Mimaki Circulation Technology


Mimaki Advanced Pass System



Specifications

Printhead

Dual On-demand piezo heads
Print resolution

720dpi, 1,440dpi
Maximum Print Width

TxF300-75: 800mm (31.5″ in)

TxF300-1600: 1610 mm (63.4 in)
Maximum media width

TxF300-75: 810mm (31.9 in)

TxF300-1600: 1620 mm (63.8 in)


Maximum Media Thickness

up to 0.04″ (1 mm)
Maximum Media Weight⁨⁣

Up to 99.2 pounds (45 kg)
Ink Type

Heat transfer pigment ink PHT50 (C,M,Y,K,W)
Interface

Ethernet 1000 BASE-T / USB2.0
Power Supply⁧⁢

Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power Consumption

Txf300-75: 100V system: 1.44kW, 200V system: 1.92kW

TxF300-1600: AC100-120V, 1300W or less, AC200-240V, 1750W or less x1
Operational Environment

Temperature: 68-86 F (20° – 30°C)
Humidity: 35 – 65 % RH (Non condensing)
Dimensions (W × D × H)

TxF300-75: 1,965mm×700mm×1,392mm (77.4 x 27.6 x 54.8 in)
TxF300-1600: 3,783mm x 2,700mm x 1,392mm (148.93 in W x 106.3 in D x 54.80 in H)
Weight

126kg (277.8 lb)
Certifications

VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH,

Energy Star, RCM, KC


Inks

Thermal transfer pigment ink (PHT50) Cyan Magenta Yellow Black White
600ml PHT50-C-60 PHT50-M-60 PHT50-Y-60 PHT50-K-60
500ml PHT50-W-50
