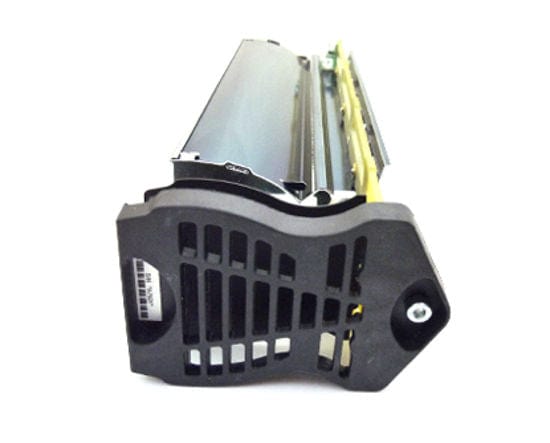

Jetrix 2030FRK SubZero 170 Cassette H

  • En solde
  • Prix régulier $550.00


This Subzero 170 Cassette H is suitable for Inktec Jetrix 2030FRK printers. This is the original Inktec part.

Powerful UV Output


The SubZero 170 delivers a 16% increase in UV output. With a 170mm cure length, the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing have enabled a design that offers exceptional service life eliminating unnecessary downtime and maintenance.

Subzero 170

  • Power: 100 W/cm variable
  • Arc length: 170mm

SubZero Standard Features:

  • Ultra-lightweight with compact ‘footprint’
  • High-intensity reflector system
  • Replaceable quartz front plate
  • Quick change lamp cassette
  • Advanced halide bulb technology
  • Integrated air-cooling
  • Switch-mode electronic power supply
  • Hi-flex plug and socket cabling connections
  • 500 hours coverage under normal conditions
  • 6 months shelf life

    Additional SubZero Options
  • High-Speed Electronic Shutter
  • Alternative bulb spectra ‘H’,’ D’,’ V’ or ‘A’
  • Enhanced optics

    SubZero Compliances (Pending)
  • ISO CE 60950-1
  • (UL CUL CB 60950-1)
  • CE EN 60204
  • EMC EN 55015
  • a
  • EMC EN 61000

    Power Supply
  • Switch-mode Electronic
  • 200 – 250V 50 – 60Hz



Compatible Printers:

  • Inktec Jetrix 2030FK
  • Inktec Jetrix 2030FRK
  • Inktec Jetrix KX7
