Description

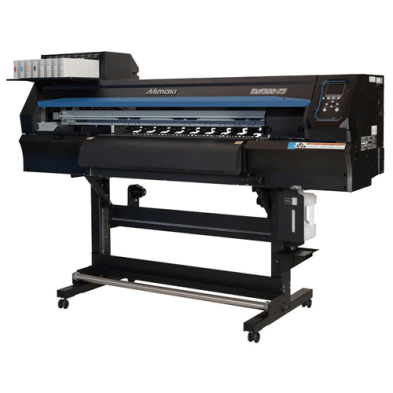

Mimaki's DTF (Direct To Film) printer
-
Degassed Ink Pack: Eliminate air from entering the ink supply to the print head, preventing nozzle drop out and ensuring constant high image quality.
-
New White Ink Circulation Technology (MCTv2): Prevents white ink sedimentation by continuously circulating the ink all the way to the damper above the print head for continuous high-quality production.
-
3-Way Intelligent Heater: Pre- and print heaters control the spread of ink on the media for blur-free image quality, and post-heater accelerates ink drying.
-
New Pinch Roller System: Fine-tuned pressure of pinch rollers enabling stable DTF film feeding.
-
Nozzle Check Unit (NCU): Automatically checks and detects clogged nozzles and starts cleaning functions to recover them.
-
Nozzle Recovery System (NRS): When the Nozzle Check Unit (NCU) cannot recover a clogged nozzle by cleaning function, the Nozzle Recovery System (NRS) automatically substitutes defective nozzles with working ones to ensure constant image quality and uninterrupted production.
- OEKO-TEX® ECO PASSPORT Certification: PHT50 thermal pigment inks are OEKO-TEX® certified. Ensuring the inks are free from any chemicals that could harm human health. PHT50 inks are suitable for printing skin-friendly clothing and other textiles for end users.
.
Our Core Technologies
Nozzle Check Unit
Nozzle Recovery System
Mimaki Circulation Technology
Mimaki Advanced Pass System
Specifications
| Printhead |
On-demand piezo head |
| Print resolution |
720dpi, 1,440dpi |
| Print speed (4 color) |
up to 35.5 ft²/hr (3.3m²/hr) |
| Maximum Print Width |
800mm (31.5″in) |
| Maximum media width |
810mm (31.9 in) |
| Maximum Media Thickness |
up to 0.04″ (1 mm) |
| Maximum Media Weight |
Up to 99.2 pounds (45 kg) |
| Ink Type |
Heat transfer pigment ink PHT50 (C,M,Y,K,W) |
| Interface |
Ethernet 1000 BASE-T / USB2.0 |
| Power Supply |
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 |
| Power Consumption |
100V system: 1.44kW, 200V system: 1.92kW |
| Operational Environment |
Temperature 20° – 30°C |
| Dimensions (W × D × H) |
1,965mm×700mm×1,392mm |
| Weight |
126kg (277.8 lb) |
| Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC |
Inks
| Thermal transfer pigment ink (PHT50) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 600ml | PHT50-C-60 | PHT50-M-60 | PHT50-Y-60 | PHT50-K-60 | |
| 500ml | PHT50-W-50 |

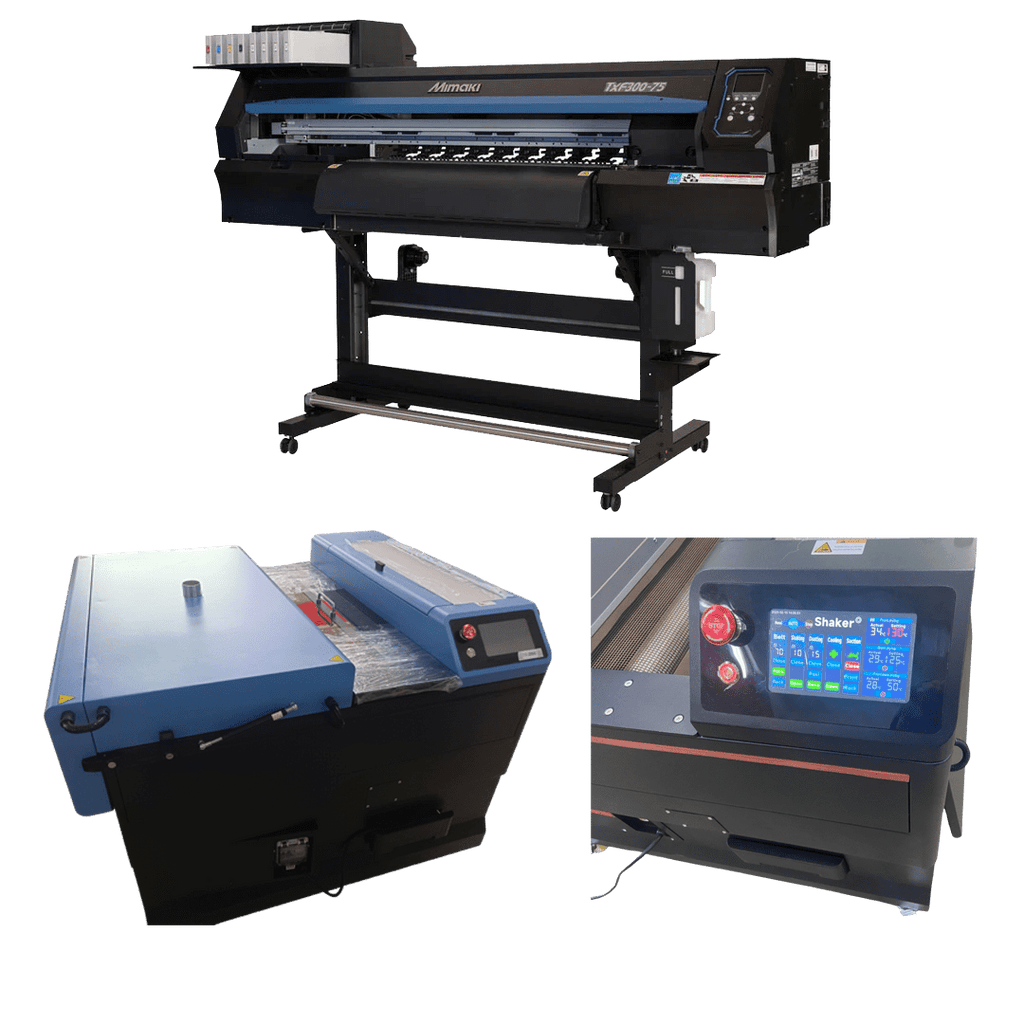

THE BUNDLE INCLUDES A FREE CONSUMABLE KIT (INK KIT, ONE ROLL OF FILM 24" + 1KG OF POWDER.
SHAKER + OVEN
The unique custom Shaker and Dryer designed explicitly for the Mimaki TXF300-75 is the ideal companion to complement the printing process and obtain the best quality possible to transfer effectively to any garment.
