Description

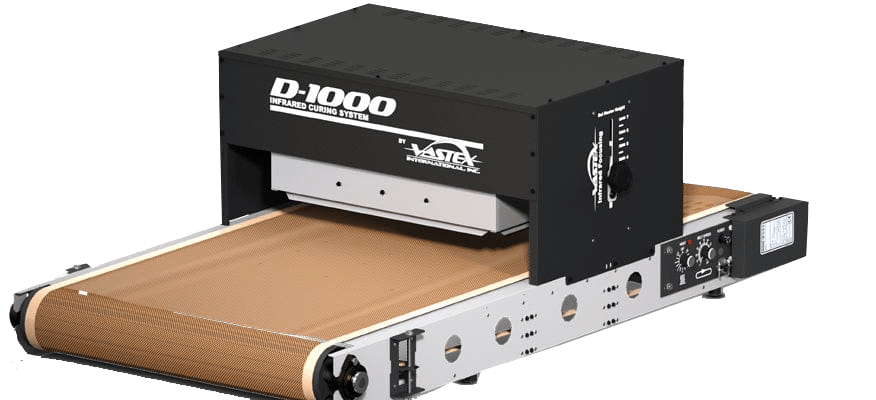

The D-1000 compact infrared heating model comes with a 26 in. (66.1 cm) wide belt and 56 in. (142.2 cm) long conveyor belt, with a 25 in. (63.5 cm) infeed as standard. An optional 10-inch conveyor extension is available if desired. A 27.75 in. (70.5 cm) wide chamber infeed allows for the loading of heavier and larger garments.
At 56 in. (142.2 cm) long and 32 in. (81.3 cm) wide overall, the unit fits on tabletops or on utility carts with tops as small as 30 in. (76.2 cm) square and is available with an optional mobile stand. It is also suitable for mobile screen printers to power on-site using a small generator at fairs, concerts, trade shows, and other events where larger garments, as well as tees, may be screen printed.
It is available in 120V or 240V models equipped with a 20 in. (50.8 cm) wide by 16 in. (40.6 cm) long, 2050-watt heater that carries the same 15-year warranty as all Vastex infrared heaters.
Variable controls for both heat intensity and conveyor speed allow fine-tuning of the drying process according to ink type, ink coverage, desired cure temperature, and the rate at which items are being printed.
The heater can be raised, lowered, and pivoted using lock knobs on the sides of the heating chamber according to the thickness of printed garments and/or the angle of printed images on irregularly shaped items, for uniform curing of the printed area using minimum energy. Heater shields are included as a standard to maximize edge-to-edge temperature consistency for increased image quality.
The compact unit is CE certified and shippable worldwide via UPS, FedEx, DHL, and other small package carriers.
SMART
Teflon-coated fiberglass belt with a tracking system
BELT WIDTH
(max garment width)
26" (66 cm)
HEATER WIDTH
20" (51 cm)
ADJUSTABLE
Speed, temperature, heater height, and tilt
FAST
110+* shirts per hour with plastisol and 50+* with discharge
PRECISE
Powerful infrared heater with tight coil pattern and heat shields
VALUABLE
Best warranty, high quality, exceptional service
COMPACT
The total footprint is about 12.5 sq. ft
(1.2 sq. m).
OPTIONAL
10" (25.4 cm) front conveyor extension
