The Best STS 24” XPD 924 DTF + 24" Shaker Printer Bundle + STS C3135 Flatbed Cutter

Economisez 3%
Prix:
$58,500.00 USD $60,595.00 USD
FINANCE NOW
When product is not in stock, usually the time to process is 5-7 days.

Description

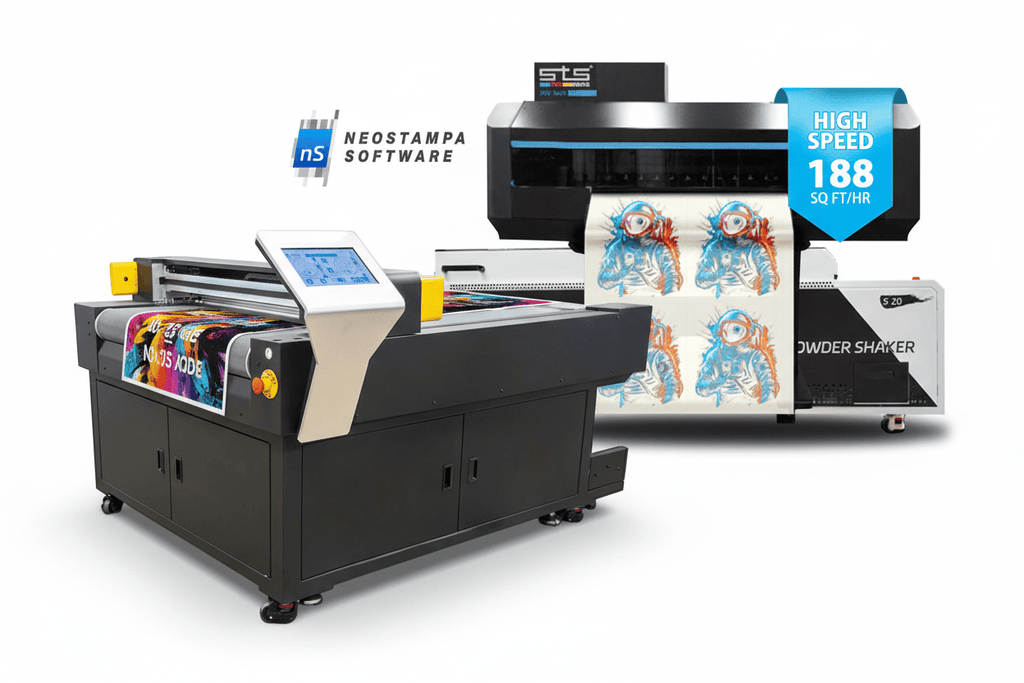

Complete Print & Cut Solution: STS XPD 924 DTF + Shaker + C3135 Flatbed Cutter

Integrate DTF printing with automated cutting to streamline production from design to finished product. The STS XPD 924 delivers high-speed, high-quality transfers on cotton, polyester, and blends, while the integrated shaker ensures optimal powder adhesion for durability. The C3135 flatbed cutter eliminates manual trimming, enabling precise contour cuts and reducing labor time per unit. This unified workflow accelerates turnaround, minimizes material waste, and allows you to offer custom apparel and textile products with professional finishing—ideal for scaling production without adding headcount or complexity to your operation.

The XPD-924D is packed with standard features such as:

  • Dropmaster 2 (Automatic Bi-Directional Alignments)
  • Feed Master (Automatic Feed Roller Adjustment)
  • i-screen Print Effects- Multiple Waveforms that Mitigate Banding
  • Media Tracker (Roll Remainder Tracking)
  • White Ink Circulation
  • Auto Cleaning and Maintenance
  • Washability Test AATCC61-2A [AATCC 61 Method 2A]

    ECO Passport

    XPD-924D Speeds

    Printer Mode Resolution Pass Printing Speed [ft2/h] Printing Speed [lm/h] Printing Speed [lft/h] Time for 328 lft Roll [h]
    High Speed 900×600 3 17.5 188 29.0 3.5
    Production 600×1200 4 13.5 145.0 22.0 4.5
    Quality 900×1200 6 9.0 96.0 15.0 6.7
    High Quality 1200×1200 8 6.7 72.0 11.0 9.0


    Characteristics

    • High-Speed Production – Maximize efficiency with rapid print output.
    • Cost-Effective Ownership & Operation – Minimize costs while maximizing performance.
    • Durable Transfers – Achieve longevity comparable to screen printing.
    • Exceptional Flexibility – Prints stretch and recover seamlessly.
    • Versatile Application – Adheres to any fabric with ease.
    • Fast Heat Press Time – Apply transfers in under 15 seconds.

    Features

    • High-precision Heavy-duty Aluminum Rail System for High Quality and Stable Printing.
    • Ease-of-use Side Mounted LAN and Power Plugs and LED Operation Panel.
    • New AccuFine HD Printheads Provide Faster Speeds with Exceptional Quality.
    • Built-in Sensors for Operator-Driven Automatic Bi-directional and Page feed Alignments.
    • Improved Front Dryer System for 20% Faster Ink Dry Times.
    • Internal LED Lighting for Unobstructed Print.
    • Updated Media Angles and Media Feeding Mechanism to Allow for Easy Loading and Page Feed for DTF Film.
    • Viewing and Maintenance Access.
    • Includes the Mutoh Status Monitor (MSM) Companion Software for Convenience and Efficiency: Records Print History, Job Cost Analysis, Remote Access.
    • Complete Turnkey Solutions that Produce Exceptional Transfers that are Super Soft and Colorful with Excellent Elasticity, and Washability which Creates the Industry’s Finest Hand Feel Transfers.



    Specifications

    Printing method Drop-on-demand Micro
    Piezo Inkjet Technology
    Print head height Four-level adjustment:
    1.5mm, 2.0mm, 2.5mm, 4.0mm
    Print head 2 (staggered)
    Max print resolution 1200×1200 dpi
    (1200/900/600/300 dpi print modes)
    Media width 600 cm 25″
    Media capacity ø 5.9” dia / 2” & 3”
    cores | Roll media 66lbs or less
    Max media thickness Low 1 0.3mm, Low2 0.8mm, Mid. 1.3mm, High 2.8mm
    Max printable width 24.5 in
    Max print speed 17.5 sqm/hr – 188 sqft/hr
    RIP software CADlink™ Digital Factory 11 / IneditTM neoStampa
    Interface Gigabit-Ethernet (1000BASE-T)
    Power Requirements Four-level adjustment:
    1.5mm, 2.0mm, 2.5mm, 4.0mm
    Print head Temperature: 68-77°F / 20-26° C
    Humidity: 40-55%
    Power Consumption Main: Operation status 70W
    or less Standby: 30W or less
    Dimensions (WxDxH) Printer including stand:
    70.68″x35.23″x56.48″ cover closed
    Weight Body: 310Ib I Stand: 70.54Ib /
    Body: 140kg I Stand: 32kg
    Inks Type DTF
    Ink Set 4 color (CMYK) | White
    Volume 500 ml Direct to Film Inks
    Cartridge XPD
    No. of slots 6

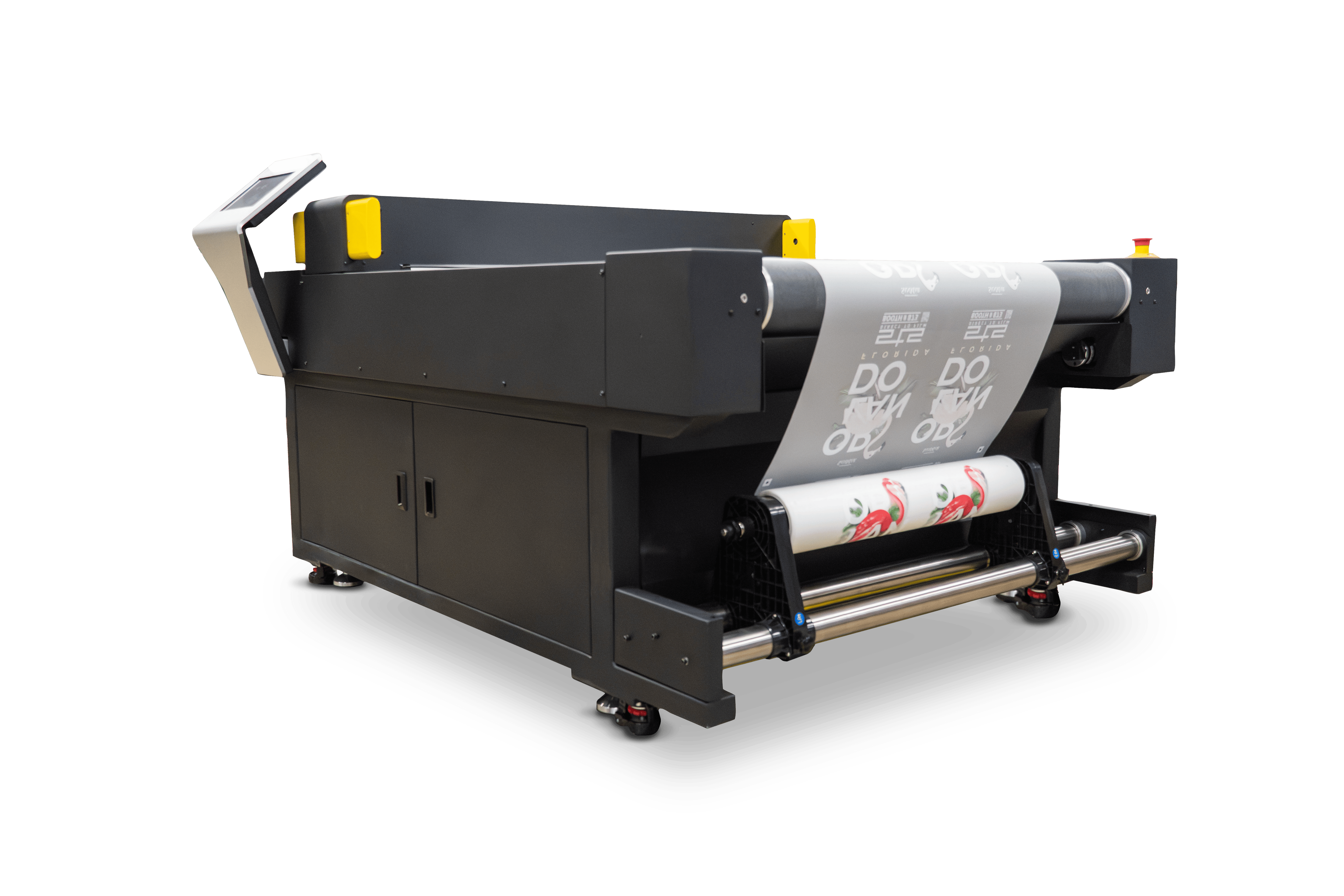

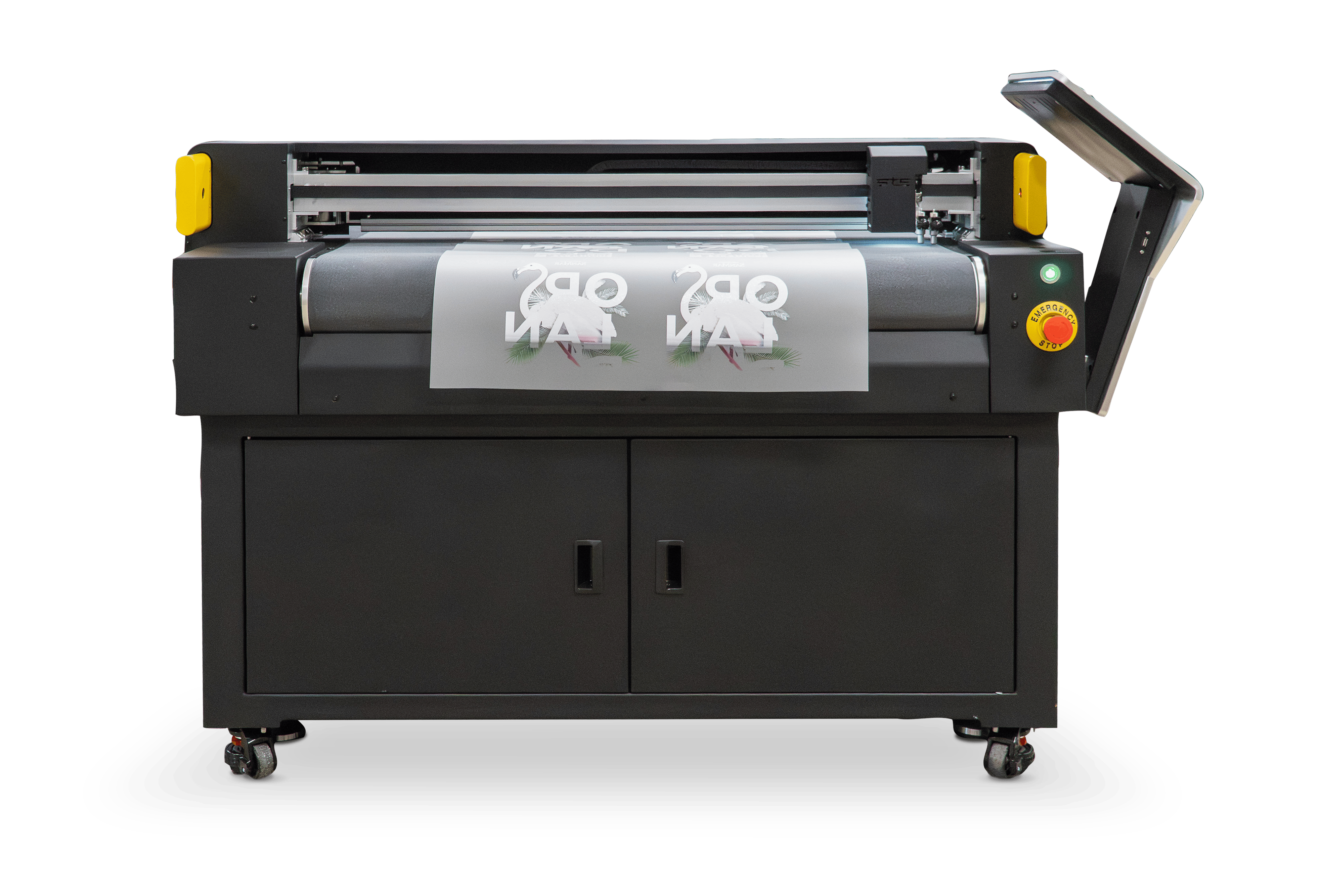

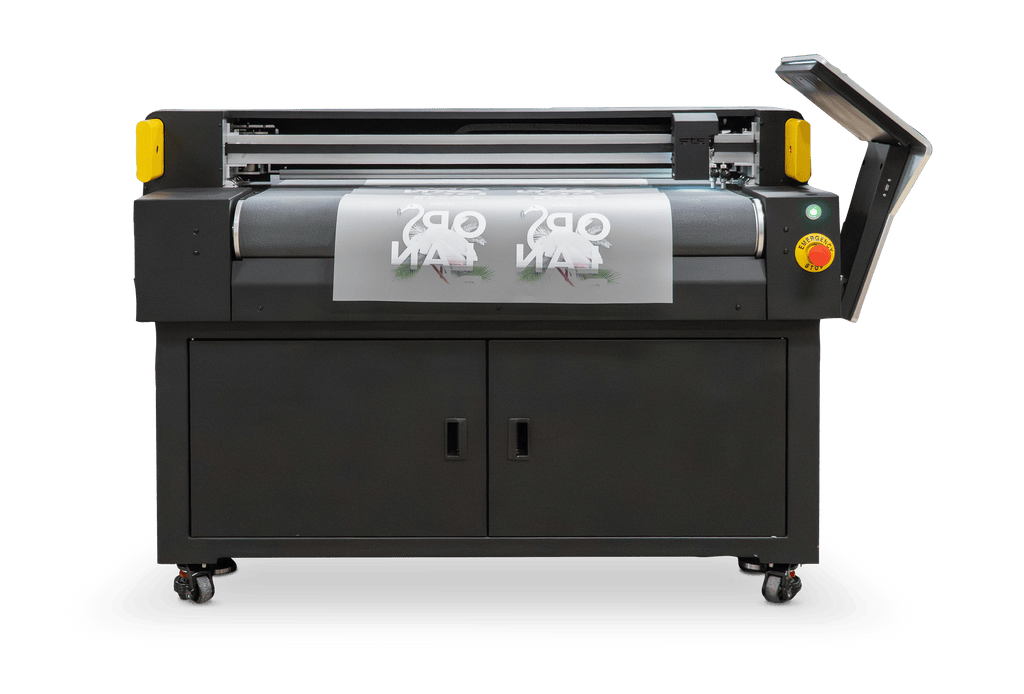

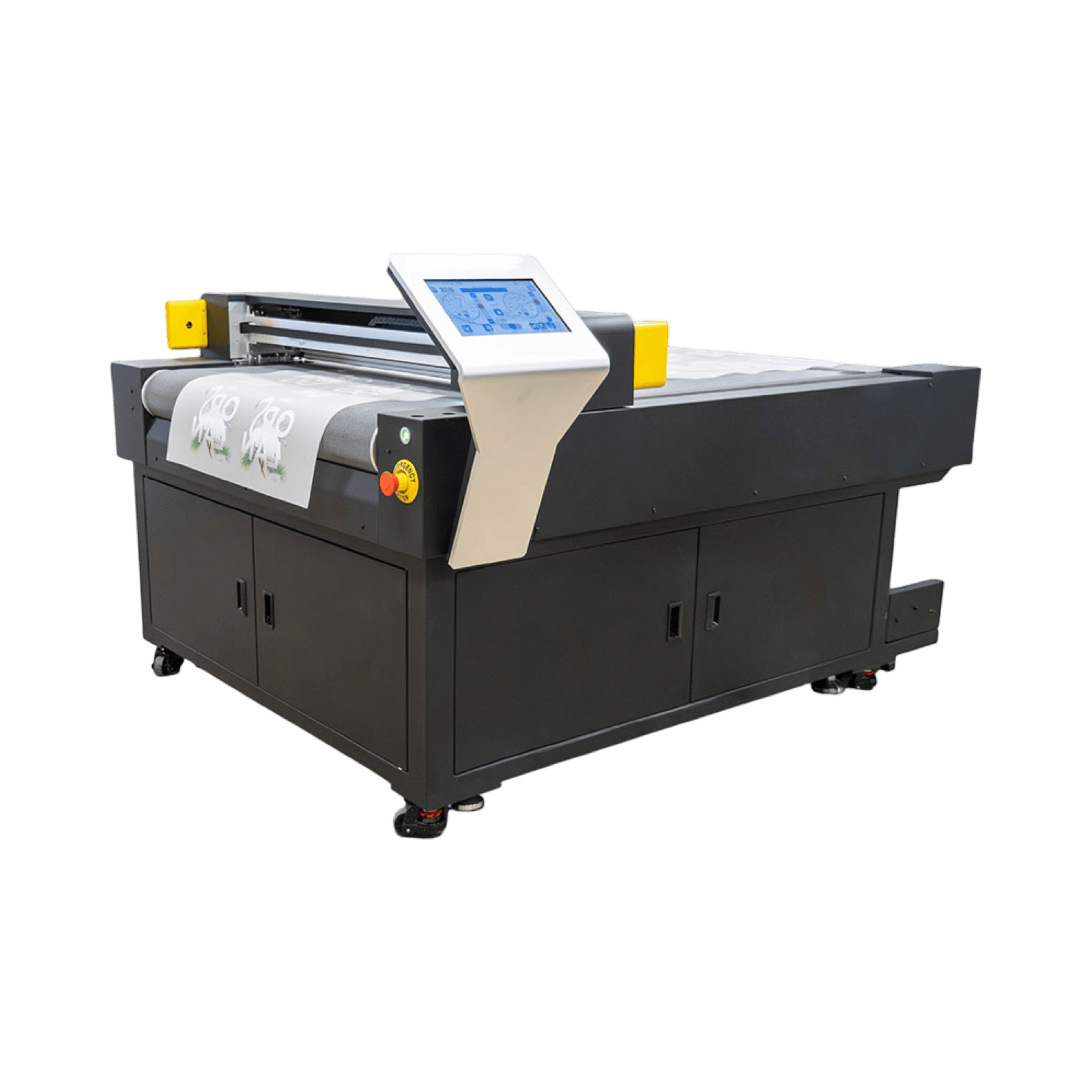

    STS C3135 FLATBED CUTTER MACHINE

    Parameters

    CUTTING CONTROL SYSTEM High-power brushless servo motor
    POSITIONING SENSOR TYPE Digital Camera (CCD)

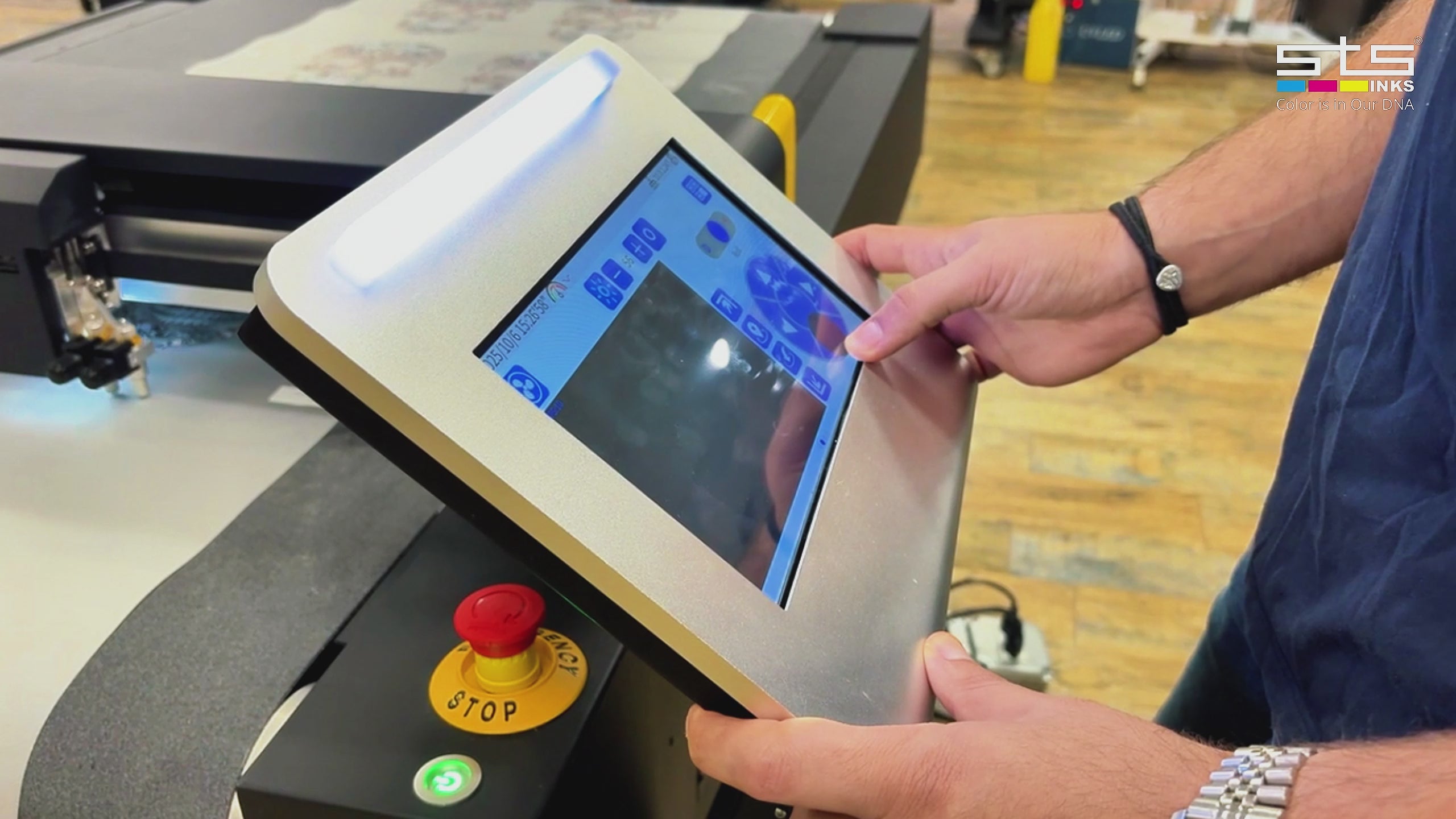

    CONTROL PANEL 10-inch capacitive touch screen
    NUMBER OF TOOL HOLDERS 1 tool holder
    BLADE TYPES Blade/ Pen/ Scoring Pen

    SOFTWARE AND COMPATIBILITY

    CONNECTIVITY USB / LAN / WiFi / U disk
    SOFTWARE AND COMPATIBILITY Cut Software CutStudio / Coral Draw/illustrator Plug-In

    POWER AND WORKING ENVIRONMENT REQUIREMENTS

    WORKING VOLTAGE AND CURRENT 110VAC ~ 120VAC – 50/60Hz – Maximum current 6.8A
    220VAC ~ 240VAC – 50/60Hz – Maximum current 3.4A
    WORKING POWER Maxium 350W
    VACUUM PUMP VOLTAGE AND CURRENT 110VAC – 50Hz – Rated current 10.8A – 60Hz – Rated current 13A
    220VAC – 50Hz – Rated current 4.5A – 60Hz – Rated current 5.6A
    AIR PUMP VACUUM POWER 110VAC – 50Hz – 0.75KW / 110VAC – 60Hz – 0.84KM
    220VAC – 50Hz – 0.75KW / 220VAC – 60Hz – 0.83KM
    OPERATION ENVIRONMENT TEMPERATURE: +5°C to +35°C / 41°F – 95°F
    HUMIDITY: 30% – 75% RH (Non-Condensing)

    DIMENSIONS AND WEIGHT

    ACTUAL DIMENSIONS 1650x1130x1020mm | 64.96×44.49×40.49in (LxWxH)
    PACKAGE DIMENSIONS 1760x1450x620mm | 69.29×57.09×24.41in (LxWxH)
    GN/NW 276±5Kg/176±5Kg | 608.47±11.02lb/388.01±11.02lb


    MACHINE PERFORMANCE

    MEDIA HOLD METHOD Vacuum suction
    SCANNING CODE TYPE Mark or QR Code
    MAXIMUM CUTTING SIZE 900 x 800 mm | 35.43 x 31.50 in
    SCANNING SPEED About 5s
    CUTTING SPEED 10-700 mm/s | 0.39-27.6 in/s
    CUTTING FORCE 0-750 g | 0-1.65 lbs of force
    MAXIMUM PAPER WEIGHT Up to 400g (Varies from different cutting materials)
    SHEET FEEDING METHOD Friction feed
    MAXIMUM DIAMETER OF PAPER FEED ROLL 200mm | 7.87in
    MAXIMUM FEED ROLL WIDTH 600mm | 23.62in
    SHEET FEEDING SPEED 100-600
    MAXIMUM CHARACTER CUTTING SIZE About 10mm2 (Varies from contour paters and medias)
    INTERNAL STORAGE SPACE Memory size: 128M | Function: For storing cutting files use
    MECHANICAL RESOLUTION 0.02m | 0.00079in
    PROGRAMMABLE RESOLUTION HPGL 0.025mm | HPGL 0.00984in
    REPEAT PRECISION ≤ 0.05mm | ≤ 0.00197in
    CUTTING MEDIA TYPES Hot Film / Sticker / Cardboard / etc.
