Description
Achieve Maximum Productivity with Minimal Steps
This series delivers an array of applications to optimize workflows. Equipped with innovative technologies for faster throughput and on-board cutting, you can create indoor and outdoor graphics using eco-solvent inks or textiles, apparel and soft signage using dye-sublimation inks.- Available in 54” and 64” widths with print speeds up to 1,140 SqFt/Hr.
- Print and cut capability in one unit.
- Ability to pre-cut before printing to prevent film separation.
- Eco-solvent: 10 color options, including Silver, White, Orange, and Light Black inks.
- Dye-sublimation: 6 color options, including Light Blue and Light Magenta inks.
- ID Cut Function for automation and unattended operation.
- Optional economic 2-liter bulk ink system for long-running jobs.
- Even ink drying with a three-way intelligent heater.
- Reusable Mimaki Eco-Cartridge on SS21, BS3, and BS4 eco-solvent inks.
- The automatic media take-up reel.
- USB/Ethernet connectivity.
- RIP software RasterLink6 included.
Our Core Technologies
 |
Waveform Control |
 |
Mimaki Advanced Pass System |
 |
Intelligent Heaters |
 |
Nozzle Check Unit |
 |
Nozzle Recovery System |
 |
Mimaki Bulk Ink System |
 |
Uninterrupted Ink Supply System |
 |
Mimaki Circulation Technology |
 |
Mimaki Fine Diffusion |
 |
Continuous Mark Detect |
 |

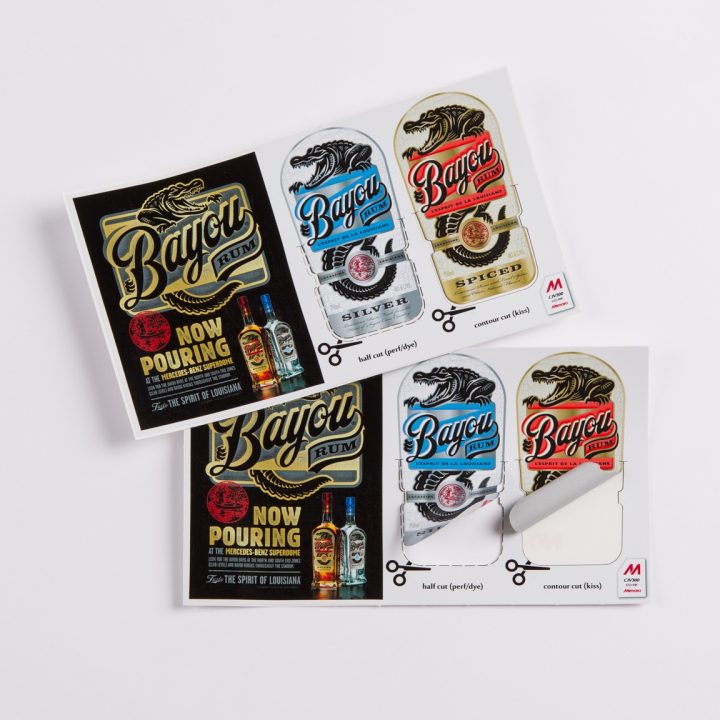

Half Cut |
 |
Over Cut |
 |
Zero Margin Mark |
Specifications
Printhead
Two on-demand piezo heads in a staggered array
Print resolution
360 dpi, 540 dpi, 720 dpi, 1,080 dpi, 1,440 dpi
Print speed (4 color mode)
CJV300-130 Plus: up to 991.4 SqFt/Hr (92.1 m2/h)
CJV300-160 Plus: up to 1,139.9 SqFt/Hr (105.9 m2/h)
Maximum print width
CJV300-130 Plus: 53.6″ (1,361 mm)
CJV300-160 Plus: 63.4″ (1,610 mm)
Maximum media width
CJV300-130 Plus: 54″ (1,371 mm)
CJV300-160 Plus: 63.8″ (1,620 mm)
Maximum media thickness
up to .04″ (1 mm)
Maximum media weight
99 lbs. (45 kg)
Ink Type/Color
US & Canada- SS21, ES3, Sb54 | Mexico, Central & South America- SS21, ES3, BS3, BS4, Sb54
Cut Speed
11.8″ sec (30 cm/sec)
Maximum Cut pressure (Metric grams)
450
Cutter Types
Eccentric cutter, Blade for the small character, Blade for reflective sheet,
Blade for fluorescent sheet, Blade for PVC with low-pressure, Ballpoint pen
Interface
Ethernet, USB 2.0
Power supply
Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Power consumption
AC100V: 1.44kW or less x2 | AC200V: 1.92kW or less x2
Operational environment
Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Noncondensing)
Dimensions (W × D × H)
CJV300-130 Plus: 99″ x 28″ x 55″ (251.5 x 71.1 x 139.7 cm)
CJV300-160 Plus: 109″ x 28″ x 55″ (276.9 x 71.1 x 139.7 cm)
Weight
CJV300-130 Plus: 368 lbs. (167 kg)
CJV300-160 Plus: 392 lbs. (178 kg)
Certifications
VCCI class A, FCC class A, Compliant with UL 60950-1, ETL, CE Marking (EMC, Low voltage, and Machinery directive) /RoHS/ CB Report, REACH, ENERGY STAR®, RCM
DOWNLOAD CJV300 PLUS BROCHURE, CLICK HERE
| Eco Solvent ink (SS21) | Cyan | Magenta | Yellow | Black | Light Cyan | Light Magenta | Light Black | Orange | White | Silver |
|---|---|---|---|---|---|---|---|---|---|---|
| 2L MBIS Pack* | SPC-0588C | SPC-0588M | SPC-0588Y | SPC-0588K | SPC-0588LC | SPC-0588LM | SPC-0588LK | SPC-0588OR | ||
| 220ml cartridge | SPC-0504W-2 | SPC-0504Si | ||||||||
| 600ml eco cartridge | SS21-C-60 | SS21-M-60 | SS21-Y-60 | SS21-K-60 | SS21-LC-60 | SS21-LM-60 | SS21-LK-60 | SS21-OR-60 |
| Eco Solvent ink (ES3) | Cyan | Magenta | Yellow | Black | Light Cyan | Light Magenta | White | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 440ml cartridge | SPC-0440C | SPC-0440M | SPC-0440Y | SPC-0440K | SPC-0440LC | SPC-0440LM | ||||
| 220ml cartridge | SPC-0433W-2 |
| Dye Sublimation ink (Sb54) | Blue | Magenta | Yellow | Black | Light Blue | Light Magenta | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2L MBIS Pack* | SB54-BLT-2L | SB54-MT-2L | SB54-YT-2L | SB54-KT-2L | SB54-LBT-2L | SB54-LMT-2L | ||||
| 440ml cartridge | SB54-BLT-44 | SB54-M-44 | SB54-Y-44 | SB54-K-44 | SB54-LBL-44 | SB54-LMT-44 |
| Solvent ink (BS3) | Cyan | Magenta | Yellow | Black | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2L MBIS Pack* | SPC-0693C | SPC-0693M | SPC-0693Y | SPC-0693K | ||||||
| 600ml eco cartridge | SPC-0667C | SPC-0667M | SPC-0667Y | SPC-0667K |
| Solvent ink (BS4) | Cyan | Magenta | Yellow | Black | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2L MBIS Pack* | BS4-C-2L | BS4-M-2L | BS4-Y-2L | BS4-K-2L | ||||||
| 600ml eco cartridge | BS4-C-60 | BS4-M-60 | BS4-Y-60 | BS4-K-60 |
