Description
For the future-oriented DTG printing

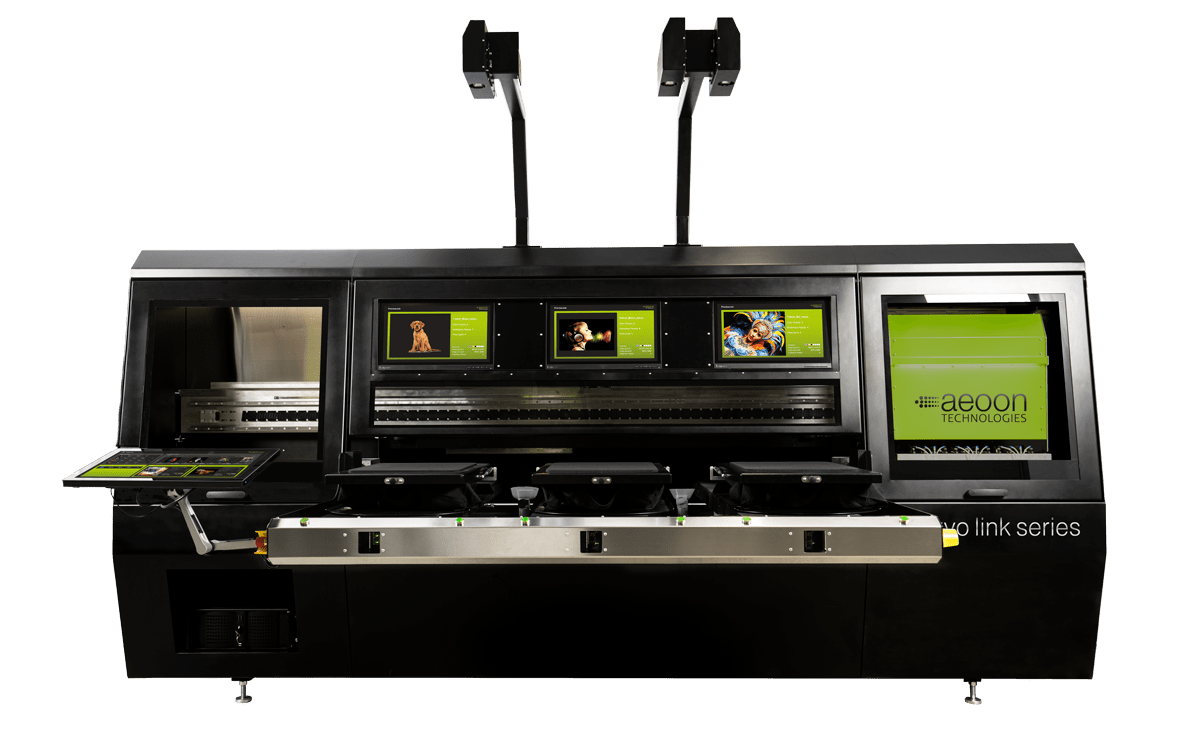

The Kyo Link Series is for companies that aim to work with the most technologically advanced DTG printers on the market.
It connects complex front-end interfaces with demanding back-end processes, can be linked with a wide variety of applications, and uses the most modern RIP software. The Kyo Link Series allows effortless connections to a homepage, online shop, and API interfaces. Further highlights are an integrated projector, scanner, and heat press with which R2P materials can be pre-pressed. Of course, in addition to the smooth human-machine interaction, as with all aeoon printers, you achieve unrivaled production capacities with the highest quality print results.
The Kyo Link Series is therefore the most suitable printer for companies with high production volumes and automation requirements, which want to remain competitive and well equipped to produce for future market requirements.
Output C8 – on a dark garment
Print size (40 x 20 cm / ~16 x 8 in)*
Depending on the performance of the operator, on the material and design.
Benefits:
- Latest software version
- Visualization for each print job on an extra screen
- Job scanner for each print station
- Improved automation functionality
- Improved integrations platform
- No use of pretreatment on white garments – for low print costs
- Integrated heat press for pre-treated T-shirts, max. size 40 x 50 cm
- Industrial print heads with a print resolution from 600 dpi up to 2400 dpi
- Integrated beamer
- Integrated API interface.
Thomas Dress, CEO & Founder of Smake®
“Smake® recommends the Kyo Link series especially for POD customers with one-offs. The additional features, such as the integrated scanner, projector, and heat presses for pre-pressing R2P shirts or freshly pretreated textiles, provide the perfect base for integrating the Link into a fully automated production process.”
Technical specifications:
| Industrial printheads: | 8 or 12 |
| Print stations: | 3 |
| Color channels: | Double CMYK, CMYK|4W, Double CMYK|4W, CMYK|8W or CMYKOG|6W |
| Max. Print size: | 60 x 90 cm / 23.6 x 35.4 in |
| Printable material: | Cotton, synthetics, mixed fibers, canvas, wood, leather, and more |
| Machine size: | 410 x 290 x 200 cm 161.4 x 114.2 x 78.7 in |
| Machine weight: | 2150 kg; 4740 lb |
| Electrical connections: | 400/208 VAC, 50/60 Hz, 3 Ph, 16 A – max. power input: 7.5 kVA |
| Compressed air: | 7 bar – quality class 5 |
|
Environmental conditions: depending on the ink used |
Temperature: 22 – 28 °C, Humidity: 65 – 90 % |
