Descrizione

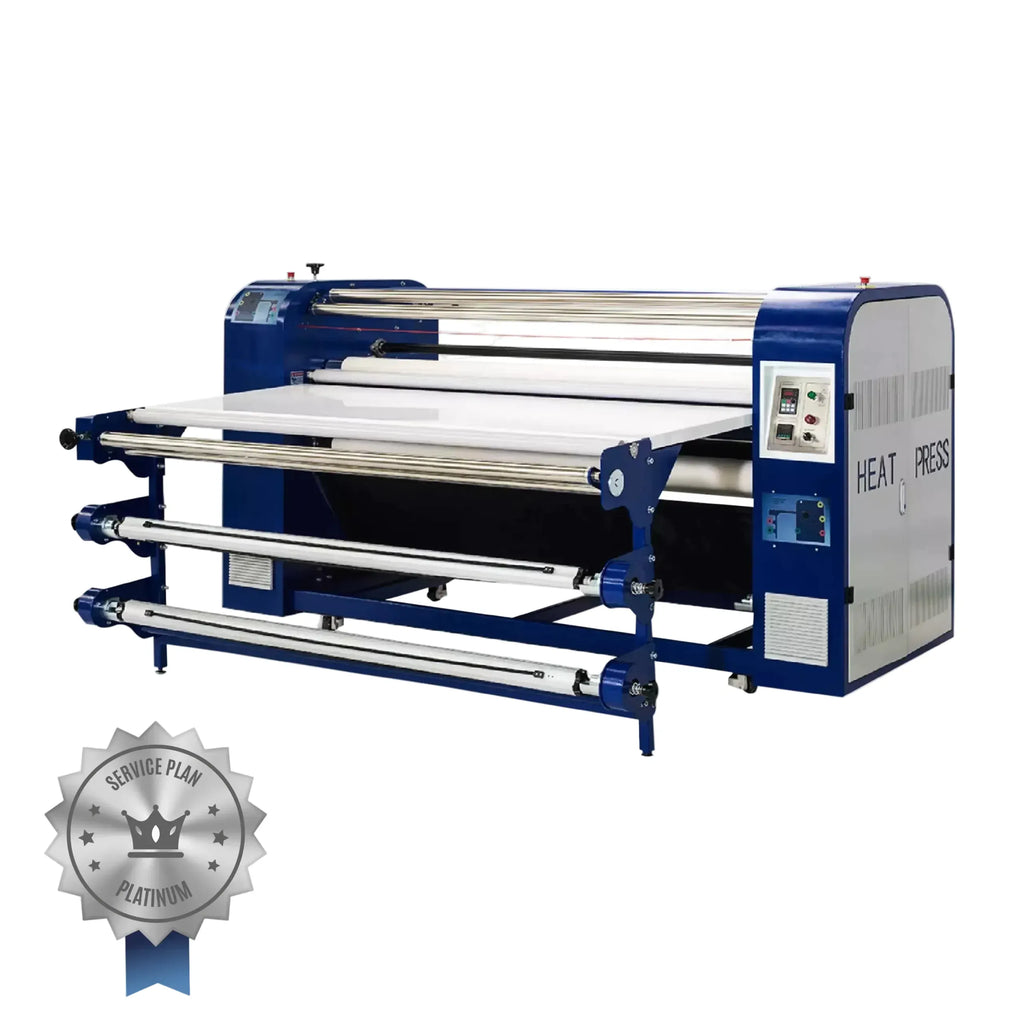

Experience a robust and flexible solution for both roll-to-roll and piece-by-piece applications with the HT Series Oil Rotary Heat Transfer machines. Specifically engineered for the textile industry, this series offers exceptional versatility with multiple configurations available. Choose from drum diameters ranging from 9 to 17 inches and expansive transfer areas of 67 to 87 inches to suit your needs.
Equipped with a sophisticated PLC and an optional touchscreen, the HT Series features an advanced calibration system that ensures user comfort, operational security, and enhanced energy efficiency.
SERIE HT:
Designed for continuous production in your sublimation line.
Features:
- Steel cylinder with a Teflon surface to prevent rust and maintain a uniform temperature.
- Effective, advanced, and economical thermal oil heating system.
- Industrial-grade heating with thermal oil for consistent performance.
- Cylinder rotation speed controller.
- Digital temperature controller for precise adjustments.
- Option to reverse the cylinder's rotation.
- Four tension rollers for the blanket.
- Integrated work table for piece-by-piece applications.
- Oil level indicator to monitor the amount of oil in the cylinder.
- Automatic take-up rollers to collect used material.
- Engineered for both continuous roll-to-roll and individual piece sublimation.
- Automatic blanket alignment correction system.
- Emergency stop device for enhanced safety.
- Blanket protection alarm with limit sensors.
Technical Specifications
- Belt Width: 67” / 170 cm
- Heat Transfer Principle: Thermal oil
- Thermal Cylinder Diameter: 9” / 23 cm
- Power Required: 7.7 KW
- Loading Rollers: 3
- Take-up Rollers: 3
- Current: 35A–40A at 220V AC
- Blanket Size: 68” x 96” (1.73m x 2.43m)
- Productivity: 19” to 118” per minute (0.5 to 3m per minute)
- Transfer System: Roll-to-Roll and Piece-to-Piece
- Startup Time: Approximately 50–70 minutes
- Dimensions (L x W x H): 98” x 64” x 82” (250cm x 165cm x 210cm)
- Weight: Approximately 1750 lbs / 800 kg
- Max Temperature: 450°F / 240°C
- Frequency: 50–60 Hz
- Work Table Dimensions: 70” x 35” (180 cm x 90 cm)
